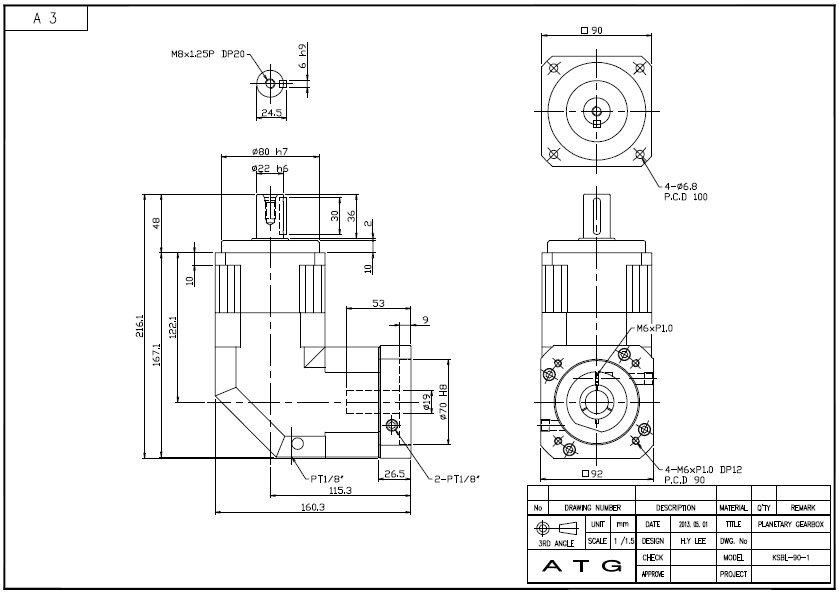

1. KSBL90 시리즈 1단 감속기 외형도.

KSBL90 시리즈 1단 감속기 외형도.

KSBL90 시리즈 외형도 및 카다로그(KSBL90-(감속비율)-P1

감속기모델명:  KSBL90-003-P1, KSBL90-004-P1, KSBL90-005-P1, KSBL90-006-P1, KSBL90-007-P1, KSBL90-008-P1, KSBL90-009-P1, KSBL90-010-P1

1. PDF

2. DWG(2D)

3. STP(3D)

4. KSBL 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

  HG-KR73, HG-KR73B, HG-MR73, HG-MR73B, HG-SR52, HG-SR52B, HG-SR102, HG-SR102B

MR-J3 시리즈

 HF-KP73, HF-KP73B, HF-MP73, HF-MP73B, HF-SP52, HF-SP52B, HF-SP102, HF-SP102B

MR-J2S 시리즈

 HC-KFS73, HC-KFS73B, HC-MFS73, HC-MFS73B, HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B
    KSBL 시리즈 1단 감속기 SPEC.

KSBL 감속기 1단 SPEC.

    2. KSBL90 시리즈 2단 감속기 외형도.
KSBL90 시리즈 2단 감속기 외형도.

KSBL90 시리즈 외형도 및 카다로그(KSBL90-(감속비율)-P1

감속기모델명:  KSBL90-015-P1, KSBL90-020-P1, KSBL90-025-P1, KSBL90-030-P1, KSBL90-035-P1, KSBL90-040-P1, KSBL90-050-P1,
KSBL90-060-P1, KSBL90-070-P1, KSBL90-080-P1, KSBL90-090-P1, KSBL90-100-P1

1. PDF

2. DWG(2D)

3. STP(3D)

4. KSBL 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-KR23, HG-KR23B, HG-MR23, HG-MR23B, HG-KR43, HG-KR43B, HG-MR43, HG-MR43B
 HG-KR73, HG-KR73B, HG-MR73, HG-MR73B, HG-SR52, HG-SR52B, HG-SR102, HG-SR102B

MR-J3 시리즈

 HF-KP23, HF-KP23B, HF-MP23, HF-MP23B, HF-KP43, HF-KP43B, HF-MP43, HF-MP43B
 HF-KP73, HF-KP73B, HF-MP73, HF-MP73B, HF-SP52, HF-SP52B, HF-SP102, HF-SP102B

MR-J2S 시리즈

 HC-KFS23, HC-KFS23B, HC-MFS23, HC-MFS23B, HC-KFS43, HC-KFS43B, HC-MFS43, HC-MFS43B
 HC-KFS73, HC-KFS73B, HC-MFS73, HC-MFS73B, HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B
    KSBL 시리즈 2단 감속기 SPEC.
KSBL 감속기 2단 SPEC.

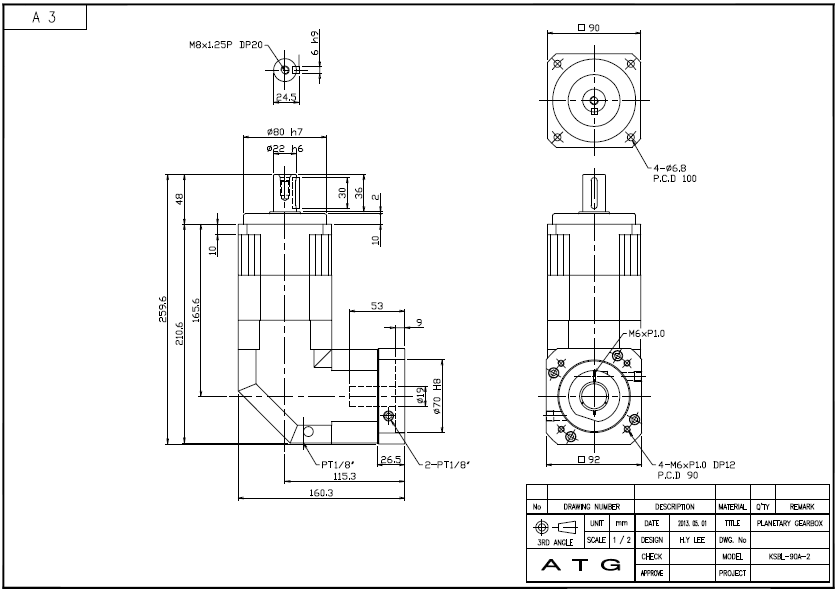

    3. KSBL90A 시리즈 2단 감속기 외형도.
KSBL90 시리즈 2단 감속기 외형도.

PGX90S-H 시리즈 외형도 및 카다로그(PGX90S-H-(감속비율)

감속기모델명:  KSBL90A-015-P1, KSBL90A-020-P1, KSBL90A-025-P1, KSBL90A-030-P1, KSBL90A-035-P1, KSBL90A-040-P1, KSBL90A-050-P1,
                     KSBL90A-060-P1, KSBL90A-070-P1, KSBL90A-080-P1, KSBL90A-090-P1, KSBL90A-100-P1

1. PDF

2. DWG(2D)

3. STP(3D)

4. KSBL 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

  HG-KR73, HG-KR73B, HG-MR73, HG-MR73B, HG-SR52, HG-SR52B, HG-SR102, HG-SR102B

MR-J3 시리즈

  HF-KP73, HF-KP73B, HF-MP73, HF-MP73B, HF-SP52, HF-SP52B, HF-SP102, HF-SP102B

MR-J2S 시리즈

  HC-KFS73, HC-KFS73B, HC-MFS73, HC-MFS73B, HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B
    KSBL 시리즈 2단A 감속기 SPEC.
KSBL 감속기 2단 SPEC.
