서보모터용 감속기 KSBL142 시리즈 외형도 및 도면

이 부분은 iframe 대응의 브라우저로 봐 주세요.

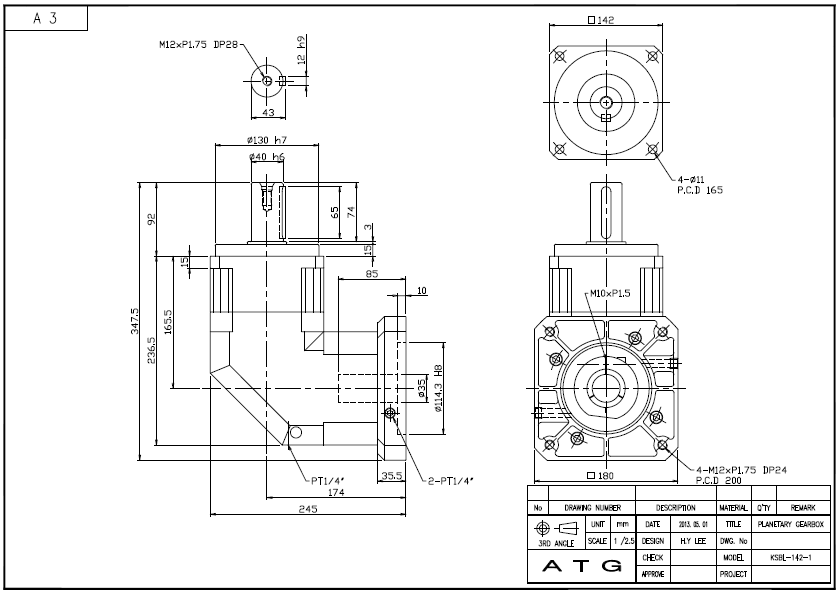

1. KSBL142 시리즈 1단 감속기 외형도.

KSBL142 시리즈 1단 감속기 외형도.

KSBL142 시리즈 외형도 및 카다로그(KSBL142-(감속비율)-P1

감속기모델명: KSBL142-003-P1, KSBL142-004-P1, KSBL142-005-P1, KSBL142-006-P1, KSBL142-007-P1, KSBL142-008-P1, KSBL142-009-P1, KSBL142-010-P1

1. PDF

2. DWG(2D)

3. STP(3D)

4. KSBL 카다로그

서보모터	SERVO MOTOR MODEL명(미쓰비시 제품)
MR-J4 시리즈	HG-SR202, HG-SR202B, HG-SR352, HG-SR352B, HG-SR502, HG-SR502B, HG-SR702, HG-SR702B
MR-J3 시리즈	HF-SP202, HF-SP202B, HF-SP352, HF-SP352B, HF-SP502, HF-SP502B, HF-SP702, HF-SP702B
MR-J2S 시리즈	HC-SFS202, HC-SFS202B, HC-SFS352, HC-SFS352B, HC-SFS502, HC-SFS502B, HC-SFS702, HC-SFS702B

KSBL 시리즈 1단 감속기 SPEC.

KSBL 감속기 1단 SPEC.

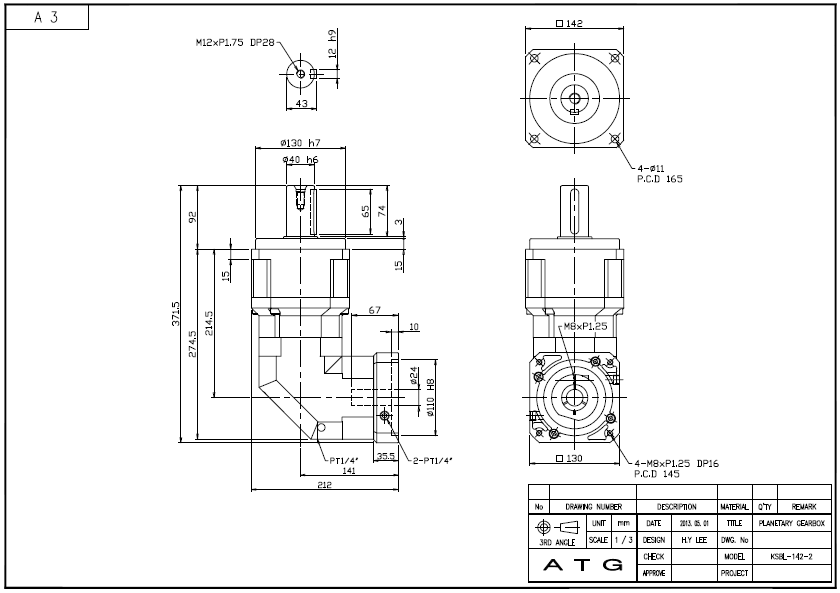

2. KSBL142 시리즈 2단 감속기 외형도.

KSBL142 시리즈 외형도 및 카다로그(KSBL142-(감속비율)-P1

감속기모델명: KSBL142-015-P1, KSBL142-020-P1, KSBL142-025-P1, KSBL142-030-P1, KSBL142-035-P1, KSBL142-040-P1, KSBL142-050-P1,
KSBL142-060-P1, KSBL142-070-P1, KSBL142-080-P1, KSBL142-090-P1, KSBL142-100-P1

1. PDF

2. DWG(2D)

3. STP(3D)

4. KSBL 카다로그

서보모터	SERVO MOTOR MODEL명(미쓰비시 제품)
MR-J4 시리즈	HG-SR52, HG-SR52B, HG-SR102, HG-SR102B, HG-SR152, HG-SR152B HG-SR202, HG-SR202B, HG-SR352, HG-SR352B, HG-SR502, HG-SR502B, HG-SR702, HG-SR702B
MR-J3 시리즈	HF-SP52, HF-SP52B, HF-SP102, HF-SP102B, HF-SP152, HF-SP152B HF-SP202, HF-SP202B, HF-SP352, HF-SP352B, HF-SP502, HF-SP502B, HF-SP702, HF-SP702B
MR-J2S 시리즈	HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B, HC-SFS152, HC-SFS152B HC-SFS202, HC-SFS202B, HC-SFS352, HC-SFS352B, HC-SFS502, HC-SFS502B, HC-SFS702, HC-SFS702B

KSBL 시리즈 2단 감속기 SPEC.

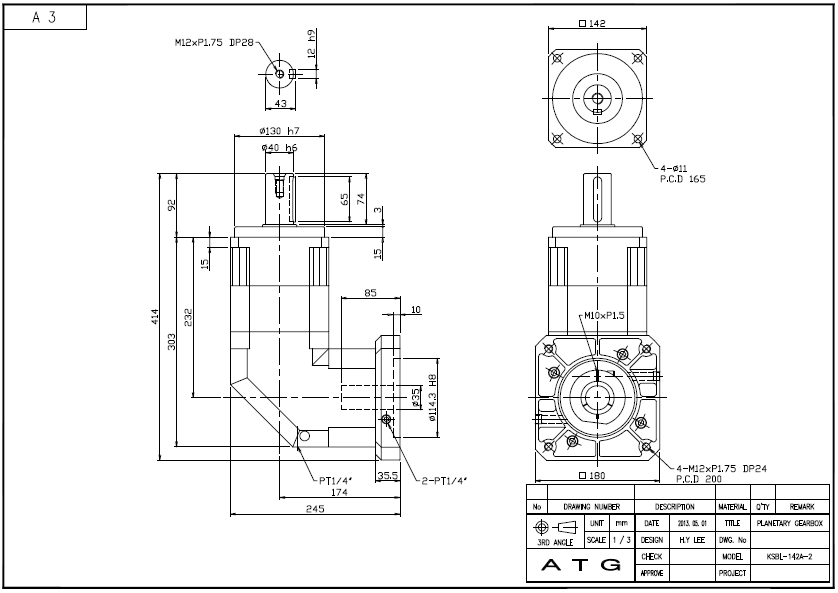

3. KSBL142-A 시리즈 2단 감속기 외형도.

KSBL142A 시리즈 외형도 및 카다로그(KSBL142A-(감속비율)-P1

감속기모델명: KSBL142A-015-P1, KSBL142A-020-P1, KSBL142A-025-P1, KSBL142A-030-P1, KSBL142A-035-P1, KSBL142A-040-P1, KSBL142A-050-P1,
KSBL142A-060-P1, KSBL142A-070-P1, KSBL142A-080-P1, KSBL142A-090-P1, KSBL142A-100-P1

1. PDF

2. DWG(2D)

3. STP(3D)

4. KSBL 카다로그

서보모터	SERVO MOTOR MODEL명(미쓰비시 제품)
MR-J4 시리즈	HG-SR202, HG-SR202B, HG-SR352, HG-SR352B, HG-SR502, HG-SR502B, HG-SR702, HG-SR702B
MR-J3 시리즈	HF-SP202, HF-SP202B, HF-SP352, HF-SP352B, HF-SP502, HF-SP502B, HF-SP702, HF-SP702B
MR-J2S 시리즈	HC-SFS202, HC-SFS202B, HC-SFS352, HC-SFS352B, HC-SFS502, HC-SFS502B, HC-SFS702, HC-SFS702B

KSBL-A 시리즈 2단 감속기 SPEC.
