서보모터용 감속기 PGX62-H 시리즈 외형도 및 도면

이 부분은 iframe 대응의 브라우저로 봐 주세요.

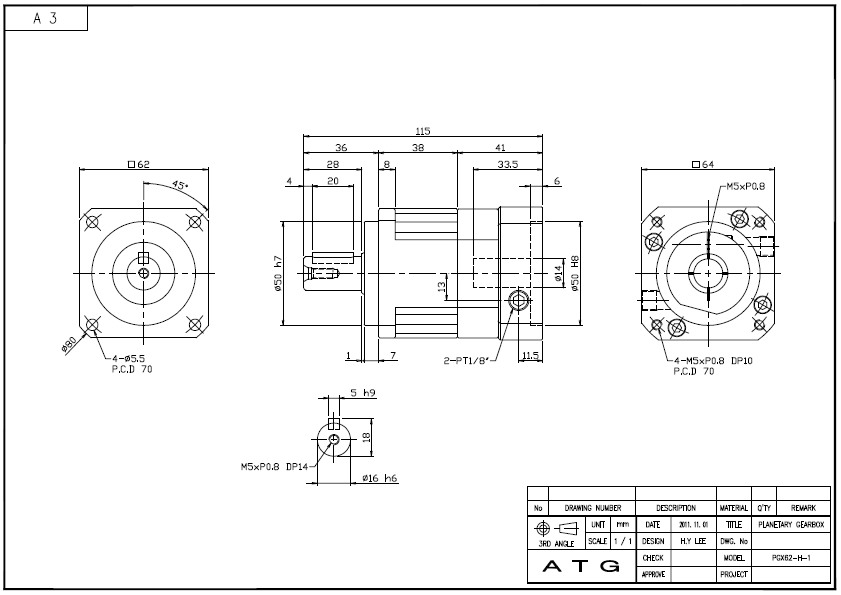

1. PGX62-H 시리즈 1단 감속기 외형도.

PGX62-H 시리즈 1단 감속기 외형도.PGX62-H-003, PGX62-H-004, PGX62-H-005, PGX62-H-006, PGX62-H-007, PGX62-H-008, PGX62-H-009, PGX62-H-010

PGX62-H 시리즈 외형도 및 카다로그(PGX62-H-(감속비율)

감속기모델명: PGX62-H-003, PGX62-H-004, PGX62-H-005, PGX62-H-006, PGX62-H-007, PGX62-H-008, PGX62-H-009, PGX62-H-010

1. PDF

2. DWG(2D)

3. STP(3D)

4. PGX-H 카다로그

서보모터	SERVO MOTOR MODEL명(미쓰비시 제품)
MR-J4 시리즈	HG-KR23, HG-KR23B, HG-MR23, HG-MR23B, HG-KR43, HG-KR43B, HG-MR43, HG-MR43B
MR-J3 시리즈	HF-KP23, HF-KP23B, HF-MP23, HF-MP23B, HF-KP43, HF-KP43B, HF-MP43, HF-MP43B
MR-J2S 시리즈	HC-KFS23, HC-KFS23B, HC-MFS23, HC-MFS23B, HC-KFS43, HC-KFS43B, HC-MFS43, HC-MFS43B

PGX-H 시리즈 1단 감속기 SPEC.

PGX-H 감속기 1단 SPEC.

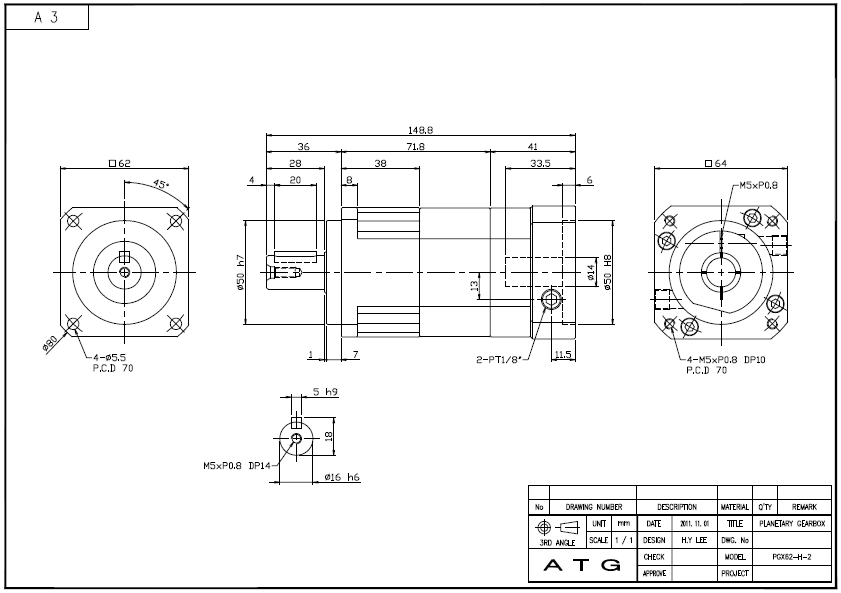

2. PGX62-H 시리즈 2단 감속기 외형도.

PGX62-H 시리즈 2단 감속기 외형도.PGX62-H-015, PGX62-H-020, PGX62-H-025, PGX62-H-030, PGX62-H-035, PGX62-H-040, PGX62-H-050, PGX62-H-060, PGX62-H-070, PGX62-H-080, PGX62-H-090, PGX62-H-100

PGX62-H 시리즈 외형도 및 카다로그(PGX62-H-(감속비율)

감속기모델명: PGX62-H-015, PGX62-H-020, PGX62-H-025, PGX62-H-030, PGX62-H-035, PGX62-H-040, PGX62-H-050, PGX62-H-060, PGX62-H-070, PGX62-H-080, PGX62-H-090, PGX62-H-100

1. PDF

2. DWG(2D)

3. STP(3D)

4. PGX-H 카다로그

서보모터	SERVO MOTOR MODEL명(미쓰비시 제품)
MR-J4 시리즈	HG-KR053, HG-KR13, HG-MR053, HG-MR13, HG-KR053B, HG-KR13B, HG-MR053B, HG-MR13B HG-KR23, HG-KR23B, HG-MR23, HG-MR23B, HG-KR43, HG-KR43B, HG-MR43, HG-MR43B
MR-J3 시리즈	HF-KP053, HF-KP13, HF-MP053, HF-MP13, HF-KP053B, HF-KP13B, HF-MP053B, HF-MP13B HF-KP23, HF-KP23B, HF-MP23, HF-MP23B, HF-KP43, HF-KP43B, HF-MP43, HF-MP43B
MR-J2S 시리즈	HC-KFS053, HC-KFS13, HC-MFS053, HC-MFS13, HC-KFS053B, HC-KFS13B, HC-MFS053B, HC-MFS13B HC-KFS23, HC-KFS23B, HC-MFS23, HC-MFS23B, HC-KFS43, HC-KFS43B, HC-MFS43, HC-MFS43B

PGX-H 시리즈 1단 감속기 SPEC.

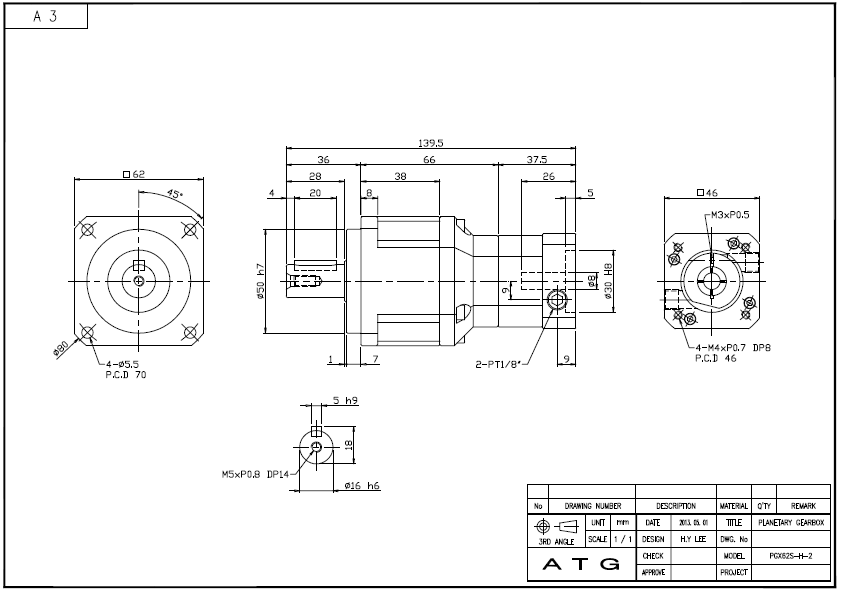

3. PGX62S-H 시리즈 2단 감속기 외형도.

PGX62S-H 시리즈 외형도 및 카다로그(PGX62S-H-(감속비율)

감속기모델명: PGX62S-H-015, PGX62S-H-020, PGX62S-H-025, PGX62S-H-030, PGX62S-H-035, PGX62S-H-040, PGX62S-H-050, PGX62S-H-060, PGX62S-H-070, PGX62S-H-080, PGX62S-H-090, PGX62S-H-100

1. PDF

2. DWG(2D)

3. STP(3D)

4. PGX-H 카다로그

서보모터	SERVO MOTOR MODEL명(미쓰비시 제품)
MR-J4 시리즈	HG-KR23, HG-KR23B, HG-MR23, HG-MR23B, HG-KR43, HG-KR43B, HG-MR43, HG-MR43B
MR-J3 시리즈	HF-KP23, HF-KP23B, HF-MP23, HF-MP23B, HF-KP43, HF-KP43B, HF-MP43, HF-MP43B
MR-J2S 시리즈	HC-KFS23, HC-KFS23B, HC-MFS23, HC-MFS23B, HC-KFS43, HC-KFS43B, HC-MFS43, HC-MFS43B

PGX-H 시리즈 1단 감속기 SPEC.
